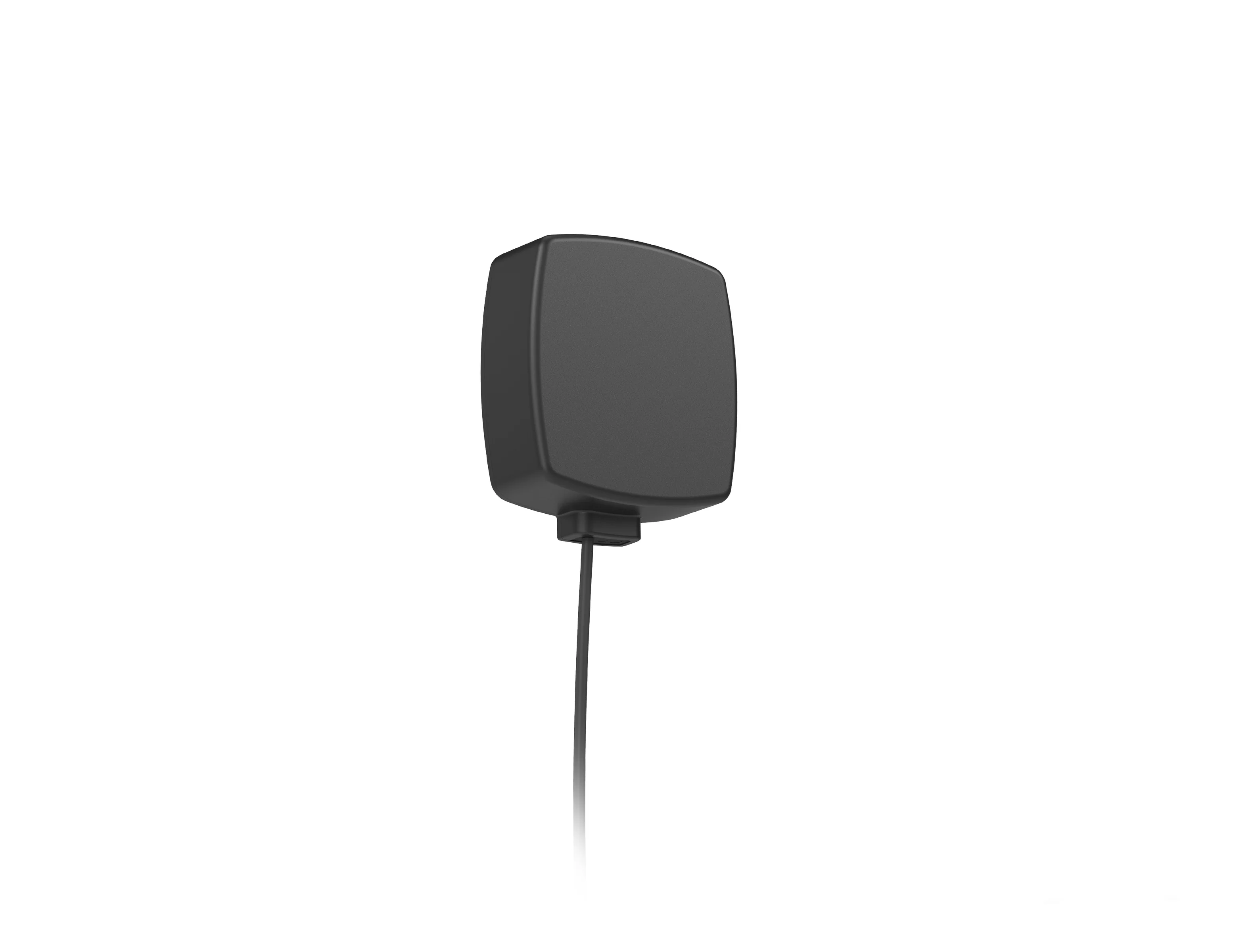

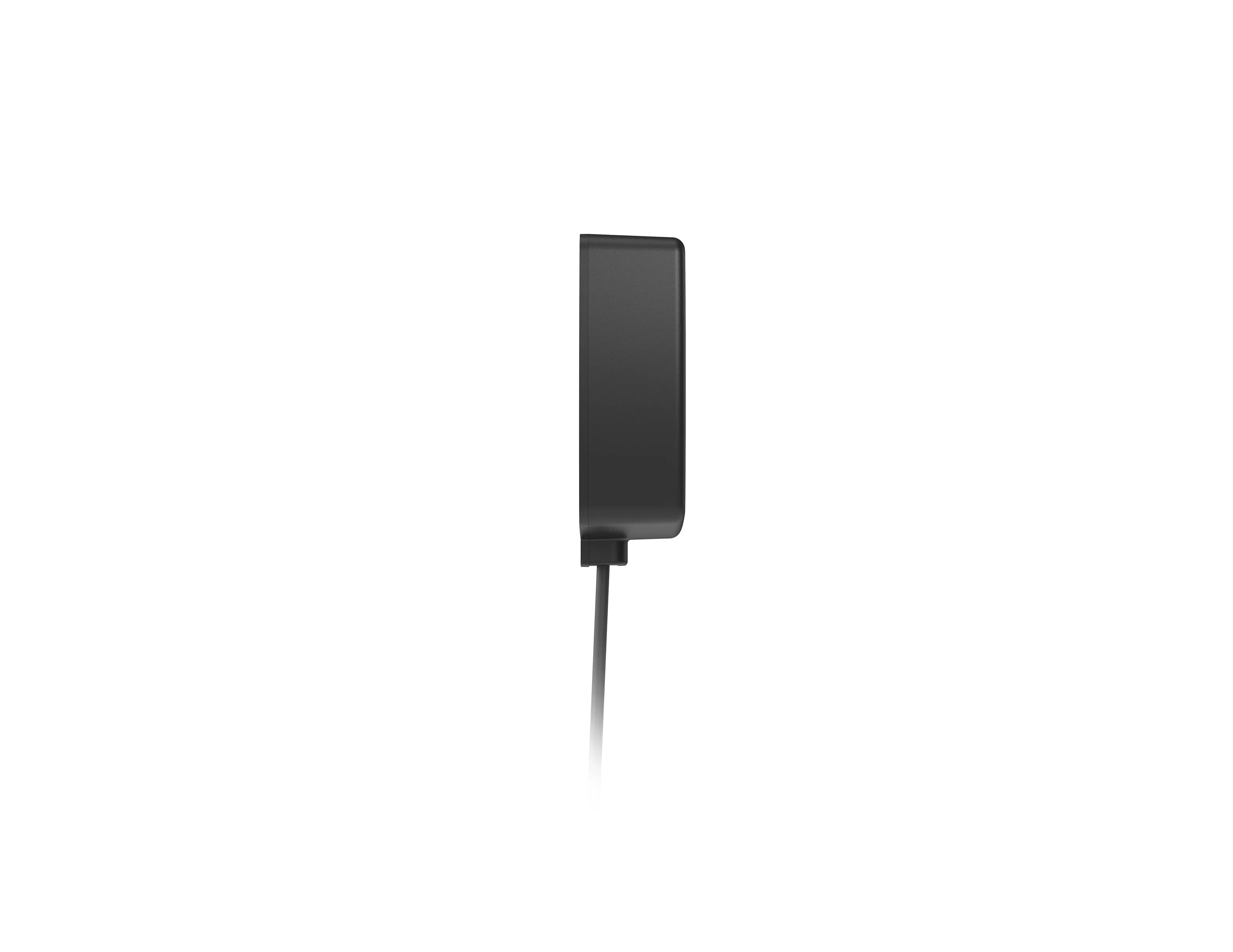

The Wilson Mini In-Vehicle Panel Antenna is a compact and versatile solution designed to improve cellular signal reception for vehicles. Supporting a wide range of frequencies, including 5G, 4G, 3G, and 2G, this low-profile antenna is perfect for boosting connectivity on the go. Its durable and weather-resistant design, combined with a simple Velcro mount, ensures reliable performance in various driving conditions, making it an ideal choice for maintaining strong and stable cellular signals.

Key Features

• Supports 5G, 4G, 3G, and 2G networks across 617-5925 MHz frequency bands.
• High-gain performance for enhanced signal strength and connectivity.
• Ground plane-independent design for versatile placement.
• Durable construction with IP67/IP69 dust and water resistance ratings.
• Compact and discreet, measuring 3.5" x 3" x 1" (89 mm x 76 mm x 30 mm).
• Includes a 10-foot DACAR-302 cable with SMA male connector for easy installation.
• Omni-directional radiation pattern for 360° signal coverage.
• Wide temperature tolerance, operating from -40°C to +85°C (-40°F to +185°F).

Specifications

• Frequency Bands: 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz.
• Return Loss: ~-7.0 dB to ~-11.2 dB, depending on frequency.
• VSWR: ~2.1:1 to ~3.1:1 for efficient signal transmission.
• Efficiency: ~25.1% to ~56.3%, depending on frequency.
• Peak Gain: ~2.1 dBi to ~6.3 dBi for improved performance.
• Impedance: 50 Ohms for seamless compatibility with signal boosters.
• Cable Length: 10 feet (3 meters).
• Radome Material: ASA UV-stable for durability and longevity.
• Max Power: 35 Watts.

Who It's For

The Wilson Mini In-Vehicle Panel Antenna is perfect for drivers who want consistent cellular connectivity during their travels. Whether you are on the road frequently for business or simply need a reliable signal for personal use, this antenna provides the performance and durability needed to stay connected in any situation.
